Please send RFQ , we will respond immediately.

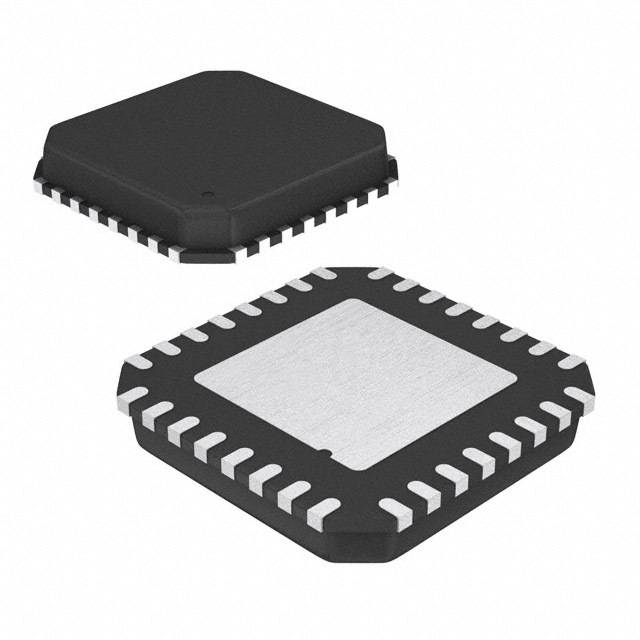

| Part Number | ATTINY26-16MU | ATTINY26-16PU | ATTINY26-16SU | ATTINY26-16MUR | ATTINY26-16MC | ATTINY26-16MI | ATTINY26-16MJ | ATTINY26-16MQ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Atmel |
| Product Status | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete | Active |
| Core Processor | AVR | AVR | AVR | AVR | AVR | AVR | AVR | AVR |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz |
| Connectivity | USI | USI | USI | USI | USI | USI | USI | USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Program Memory Size | 2KB (1K x 16) | 2KB (1K x 16) | 2KB (1K x 16) | 2KB (1K x 16) | 2KB (1K x 16) | 2KB (1K x 16) | 2KB (1K x 16) | 2KB (2K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 |
| RAM Size | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Data Converters | A/D 11x10b | A/D 11x10b | A/D 11x10b | A/D 11x10b | A/D 11x10b | A/D 11x10b | A/D 11x10b | A/D 11x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad | 20-DIP (0.300", 7.62mm) | 20-SOIC (0.295", 7.50mm Width) | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 484-BBGA |
| Supplier Device Package | 32-VQFN (5x5) | 20-PDIP | 20-SOIC | 32-VQFN (5x5) | 32-VQFN (5x5) | 32-VQFN (5x5) | 32-VQFN (5x5) | 484-FBGA (23x23) |
