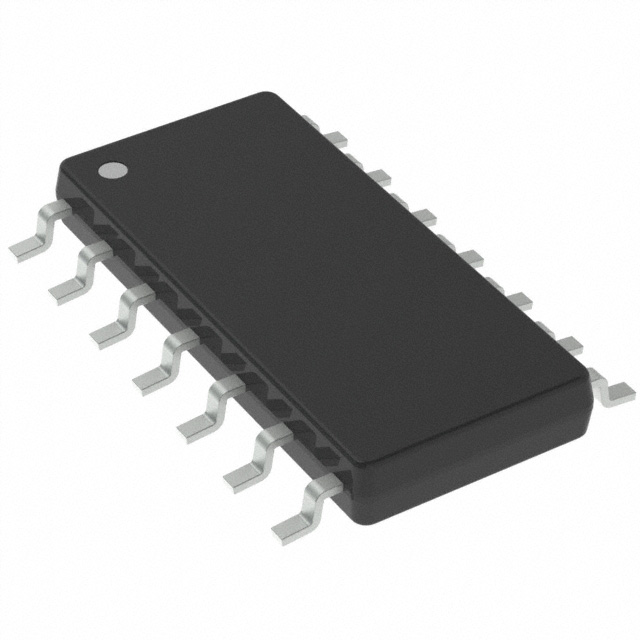

| Part Number | ATTINY1604-SSNR | ATTINY1614-SSNR | ATTINY104-SSNR | ATTINY1604-SSFR | ATTINY1604-SSN |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | AVR | AVR | AVR | AVR | AVR |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz | 12MHz | 16MHz | 20MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, PWM, WDT | POR, PWM, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 12 | 12 | 12 | 12 | 12 |
| Program Memory Size | 16KB (16K x 8) | 16KB (16K x 8) | 1KB (1K x 8) | 16KB (16K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 256 x 8 | 256 x 8 | - | 256 x 8 | 256 x 8 |
| RAM Size | 1K x 8 | 2K x 8 | 32 x 8 | 1K x 8 | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 2.7V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 10x10b | A/D 14x10b; D/A 3x8b | A/D 8x10b | A/D 10x10b | A/D 10x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC | 14-SOIC | 14-SOIC | 14-SOIC | 14-SOIC |
