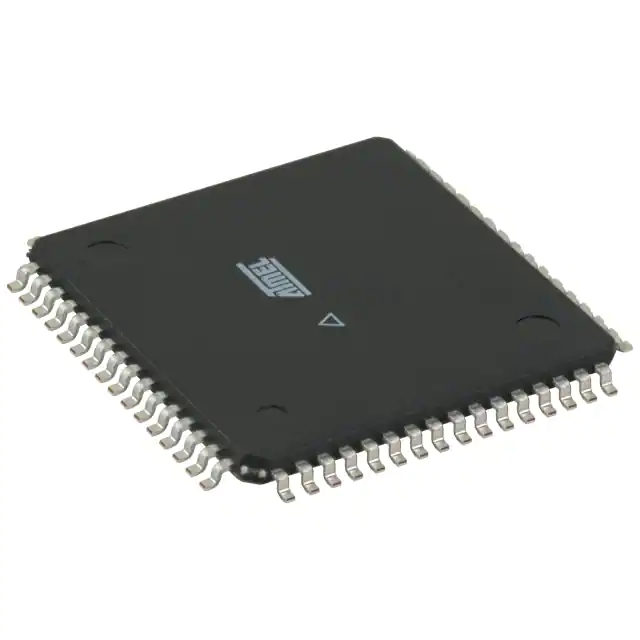

| Part Number | ATSAML21J16B-AUT | ATSAML21J18B-AUT | ATSAML21J17B-AUT | ATSAML21J16B-MUT | ATSAML21E16B-AUT | ATSAML21G16B-AUT | ATSAML21J16B-ANT |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz |
| Connectivity | I²C, LINbus, SCI, SPI, UART/USART, USB | I²C, LINbus, SCI, SPI, UART/USART, USB | I²C, LINbus, SCI, SPI, UART/USART, USB | I²C, LINbus, SCI, SPI, UART/USART, USB | I²C, LINbus, SCI, SPI, UART/USART, USB | I²C, LINbus, SCI, SPI, UART/USART, USB | I²C, LINbus, SCI, SPI, UART/USART, USB |
| Peripherals | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Number of I/O | 51 | 51 | 51 | 51 | 25 | 37 | 51 |
| Program Memory Size | 64KB (64K x 8) | 256KB (256K x 8) | 128KB (128K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 8K x 8 | 32K x 8 | 16K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V |
| Data Converters | A/D 20x12b; D/A 2x12b | A/D 20x12b; D/A 2x12b | A/D 20x12b; D/A 2x12b | A/D 20x12b; D/A 2x12b | A/D 10x12b; D/A 2x12b | A/D 14x12b; D/A 2x12b | A/D 20x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-TQFP | 64-TQFP | 64-TQFP | 64-VFQFN Exposed Pad | 32-TQFP | 48-TQFP | 64-TQFP |
| Supplier Device Package | 64-TQFP (10x10) | 64-TQFP (10x10) | 64-TQFP (10x10) | 64-QFN (9x9) | 32-TQFP (7x7) | 48-TQFP (7x7) | 64-TQFP (10x10) |
