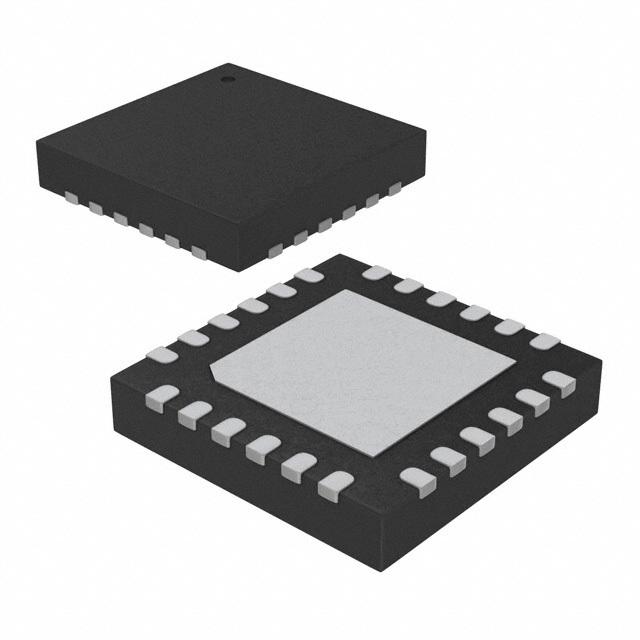

| Part Number | ATSAML11D16A-MF | ATSAML11D16A-MU | ATSAML11D16A-YF | ATSAML11D16A-MFT | ATSAML11E16A-MF | ATSAML10D16A-MF | ATSAML11D14A-MF | ATSAML11D15A-MF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M23 | ARM® Cortex®-M23 | ARM® Cortex®-M23 | ARM® Cortex®-M23 | ARM® Cortex®-M23 | ARM® Cortex®-M23 | ARM® Cortex®-M23 | ARM® Cortex®-M23 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 17 | 17 | 17 | 17 | 25 | 17 | 17 | 17 |
| Program Memory Size | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 16KB (16K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 |
| RAM Size | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V |
| Data Converters | A/D 5x12b; D/A 1x10b | A/D 5x12b; D/A 1x10b | A/D 5x12b; D/A 1x10b | A/D 5x12b; D/A 1x10b | A/D 10x12b; D/A 1x10b | A/D 5x12b; D/A 1x10b | A/D 5x12b; D/A 1x10b | A/D 5x12b; D/A 1x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-SSOP (0.209", 5.30mm Width) | 24-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) | 24-VQFN (4x4) | 24-SSOP | 24-VQFN (4x4) | 32-VQFN (5x5) | 24-VQFN (4x4) | 24-VQFN (4x4) | 24-VQFN (4x4) |
