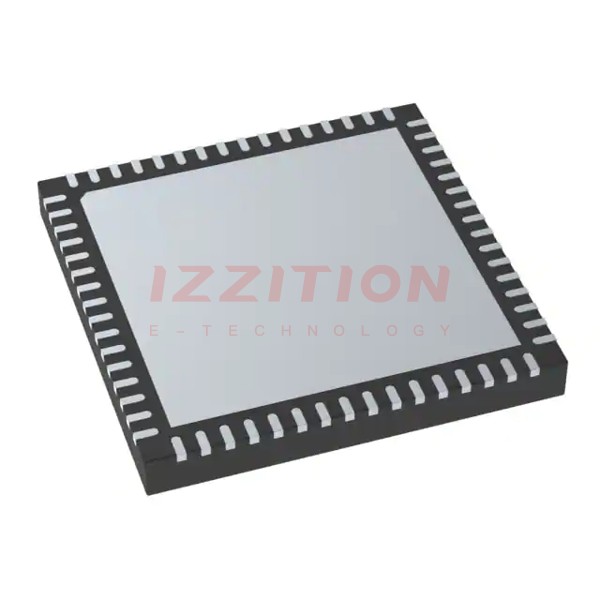

| Part Number | ATSAME51J19A-MU | ATSAME53J19A-MU | ATSAME51J19A-MUT | ATSAMD51J19A-MU | ATSAME51G19A-MU | ATSAME51J18A-MU | ATSAME51J19A-AU | ATSAME51J19A-MF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 120MHz | 120MHz | 120MHz | 120MHz | 120MHz | 120MHz | 120MHz | 120MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | EBI/EMI, Ethernet, I²C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM | Brown-out Detect/Reset, DMA, I²S, POR, PWM | Brown-out Detect/Reset, DMA, I²S, POR, PWM | Brown-out Detect/Reset, DMA, I²S, POR, PWM | Brown-out Detect/Reset, DMA, I²S, POR, PWM | Brown-out Detect/Reset, DMA, I²S, POR, PWM |
| Number of I/O | 51 | 51 | 51 | 51 | 37 | 51 | 51 | 51 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 256KB (256K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - |
| RAM Size | 192K x 8 | 192K x 8 | 192K x 8 | 192K x 8 | 192K x 8 | 128K x 8 | 192K x 8 | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V |
| Data Converters | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 20x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 64-TQFP | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-VQFN (9x9) | 64-VQFN (9x9) | 64-VQFN (9x9) | 64-VQFN (9x9) | 48-QFN (7x7) | 64-VQFN (9x9) | 64-TQFP (10x10) | 64-QFN (9x9) |
