Please send RFQ , we will respond immediately.

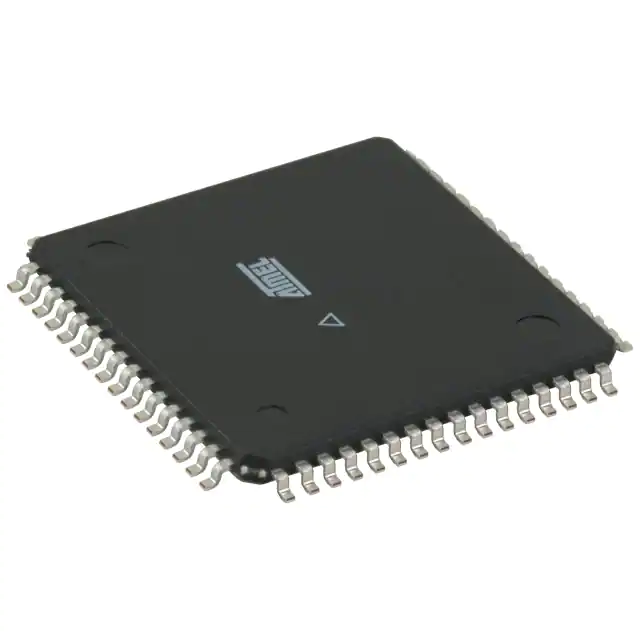

| Part Number | ATSAMDA1J14B-ABT | ATSAMDA1J15B-ABT | ATSAMDA1J16B-ABT | ATSAMDA1E14B-ABT | ATSAMDA1G14B-ABT |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz |
| Connectivity | I²C, SCI, SPI, UART/USART, USB | I²C, SCI, SPI, UART/USART, USB | I²C, SCI, SPI, UART/USART, USB | I²C, SCI, SPI, UART/USART, USB | I²C, SCI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 52 | 52 | 52 | 26 | 38 |
| Program Memory Size | 16KB (16K x 8) | 32KB (32K x 8) | 64KB (64K x 8) | 16KB (16K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 4K x 8 | 4K x 8 | 8K x 8 | 4K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.63V | 2.7V ~ 3.63V | 2.7V ~ 3.63V | 2.7V ~ 3.63V | 2.7V ~ 3.63V |
| Data Converters | A/D 16x12b; D/A 1x10b | A/D 16x12b; D/A 1x10b | A/D 16x12b; D/A 1x10b | A/D 10x12b; D/A 1x10b | A/D 14x12b; D/A 1x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-TQFP | 64-TQFP | 64-TQFP | 32-TQFP | 48-TQFP |
| Supplier Device Package | 64-TQFP (10x10) | 64-TQFP (10x10) | 64-TQFP (10x10) | 32-TQFP (7x7) | 48-TQFP (7x7) |
