Please send RFQ , we will respond immediately.

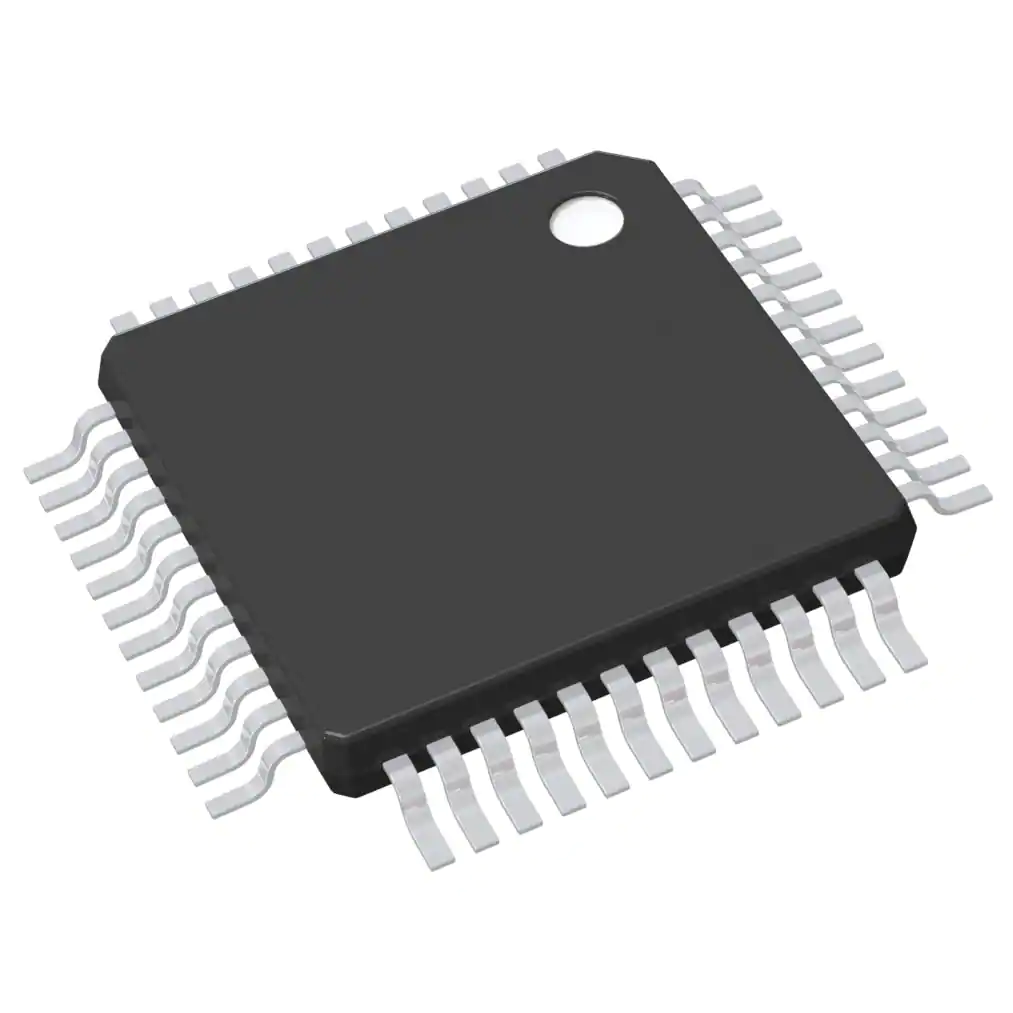

| Part Number | ATSAMD20G17A-AUT | ATSAMD20J17A-AUT | ATSAMD20G17A-MUT | ATSAMD20G18A-AUT | ATSAMD20E17A-AUT | ATSAMD20G14A-AUT | ATSAMD20G15A-AUT | ATSAMD20G16A-AUT | ATSAMD20G17A-ANT | ATSAMD20G17A-AU |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz |
| Connectivity | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 38 | 52 | 38 | 38 | 26 | 38 | 38 | 38 | 38 | 38 |
| Program Memory Size | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) | 256KB (256K x 8) | 128KB (128K x 8) | 16KB (16K x 8) | 32KB (32K x 8) | 64KB (64K x 8) | 128KB (128K x 8) | 128KB (128K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - | - | - |
| RAM Size | 16K x 8 | 16K x 8 | 16K x 8 | 32K x 8 | 16K x 8 | 2K x 8 | 4K x 8 | 8K x 8 | 16K x 8 | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V |
| Data Converters | A/D 14x12b; D/A 1x10b | A/D 20x12b; D/A 1x10b | A/D 14x12b; D/A 1x10b | A/D 14x12b; D/A 1x10b | A/D 10x12b; D/A 1x10b | A/D 14x12b; D/A 1x10b | A/D 14x12b; D/A 1x10b | A/D 14x12b; D/A 1x10b | A/D 14x12b; D/A 1x10b | A/D 14x12b; D/A 1x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-TQFP | 64-TQFP | 48-VFQFN Exposed Pad | 48-TQFP | 32-TQFP | 48-TQFP | 48-TQFP | 48-TQFP | 48-TQFP | 48-TQFP |
| Supplier Device Package | 48-TQFP (7x7) | 64-TQFP (10x10) | 48-QFN (7x7) | 48-TQFP (7x7) | 32-TQFP (7x7) | 48-TQFP (7x7) | 48-TQFP (7x7) | 48-TQFP (7x7) | 48-TQFP (7x7) | 48-TQFP (7x7) |
