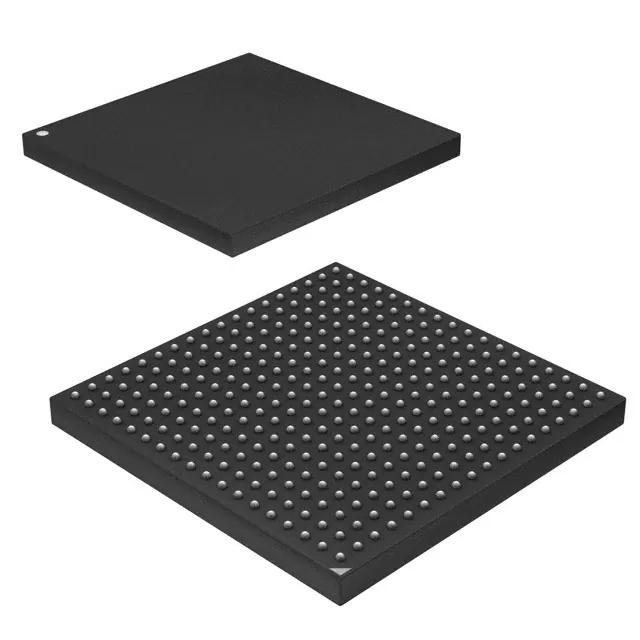

| Part Number | ATSAMA5D31A-CU | ATSAMA5D41A-CU | ATSAMA5D33A-CU | ATSAMA5D36A-CU | ATSAMA5D31A-CUR | ATSAMA5D35A-CU | ATSAMA5D34A-CU | ATSAMA5D21A-CU | ATSAMA5D31A-CFU |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Atmel | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-A5 | ARM® Cortex®-A5 | ARM® Cortex®-A5 | ARM® Cortex®-A5 | ARM® Cortex®-A5 | ARM® Cortex®-A5 | ARM® Cortex®-A5 | ARM® Cortex®-A5 | ARM® Cortex®-A5 |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 536MHz | 600MHz | 536MHz | 536MHz | 536MHz | 536MHz | 536MHz | 500MHz | 536MHz |
| Co-Processors/DSP | - | Multimedia; NEON™ SIMD | - | - | - | - | - | Multimedia; NEON™ MPE | - |
| RAM Controllers | LPDDR, LPDDR2, DDR2 | LPDDR, LPDDR2, DDR2 | LPDDR, LPDDR2, DDR2 | LPDDR, LPDDR2, DDR2 | LPDDR, LPDDR2, DDR2 | LPDDR, LPDDR2, DDR2 | LPDDR, LPDDR2, DDR2 | LPDDR1, LPDDR2, LPDDR3, DDR2, DDR3, DDR3L, QSPI | LPDDR, LPDDR2, DDR2 |
| Graphics Acceleration | No | Yes | No | No | No | No | No | Yes | No |
| Display & Interface Controllers | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen | Touchscreen | LCD, Touchscreen | Keyboard, LCD, Touchscreen | LCD, Touchscreen |
| Ethernet | 10/100Mbps (1) | 10/100Mbps (1) | 10/100/1000Mbps (1) | 10/100/1000Mbps (1) | 10/100Mbps (1) | 10/100/1000Mbps (1) | 10/100/1000Mbps (1) | 10/100Mbps (1) | 10/100Mbps (1) |
| SATA | - | - | - | - | - | - | - | - | - |
| USB | USB 2.0 (3) | USB 2.0 (3) | USB 2.0 (3) | USB 2.0 (3) | USB 2.0 (3) | USB 2.0 (3) | USB 2.0 (3) | USB 2.0 + HSIC | USB 2.0 (3) |
| Voltage - I/O | 1.2V, 1.8V, 3.3V | 1.2V, 1.8V, 3.3V | 1.2V, 1.8V, 3.3V | 1.2V, 1.8V, 3.3V | 1.2V, 1.8V, 3.3V | 1.2V, 1.8V, 3.3V | 1.2V, 1.8V, 3.3V | 3.3V | 1.2V, 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Security Features | AES, SHA, TDES, TRNG | AES, SHA, TDES, TRNG | AES, SHA, TDES, TRNG | AES, SHA, TDES, TRNG | AES, SHA, TDES, TRNG | AES, SHA, TDES, TRNG | AES, SHA, TDES, TRNG | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC | AES, SHA, TDES, TRNG |
| Package / Case | 324-LFBGA | 289-LFBGA | 324-LFBGA | 324-LFBGA | 324-LFBGA | 324-LFBGA | 324-LFBGA | 196-TFBGA, CSBGA | 324-TFBGA |
| Supplier Device Package | 324-LFBGA (15x15) | 289-LFBGA (14x14) | 324-LFBGA (15x15) | 324-LFBGA (15x15) | 324-LFBGA (15x15) | 324-LFBGA (15x15) | 324-LFBGA (15x15) | 196-TFBGA (11x11) | 324-TFBGA (15x15) |
