Please send RFQ , we will respond immediately.

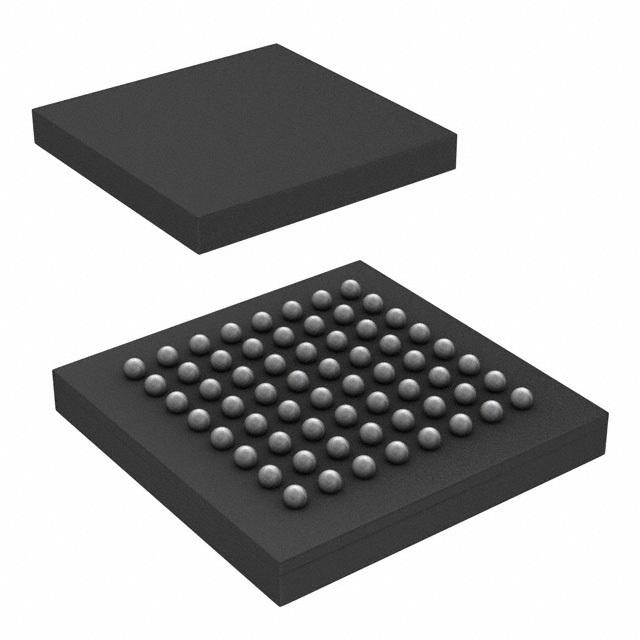

| Part Number | ATSAM4LC4BA-UUR | ATSAM4LS4BA-UUR | ATSAM4LC8BA-UUR | ATSAM4LC2BA-UUR | ATSAM4LC4BA-AUR | ATSAM4LC4BA-MUR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Atmel | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART, USB | I²C, IrDA, LINbus, SPI, UART/USART, USB | I²C, IrDA, LINbus, SPI, UART/USART, USB | I²C, IrDA, LINbus, SPI, UART/USART, USB | I²C, IrDA, LINbus, SPI, UART/USART, USB | I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Number of I/O | 43 | 48 | 43 | 43 | 43 | 43 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 512KB (512K x 8) | 128KB (128K x 8) | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 32K x 8 | 32K x 8 | 64K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.68V ~ 3.6V | 1.68V ~ 3.6V | 1.68V ~ 3.6V | 1.68V ~ 3.6V | 1.68V ~ 3.6V | 1.68V ~ 3.6V |
| Data Converters | A/D 7x12b; D/A 1x10b | A/D 7x12b; D/A 1x10b | A/D 7x12b; D/A 1x10b | A/D 7x12b; D/A 1x10b | A/D 7x12b; D/A 1x10b | A/D 7x12b; D/A 1x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-XFBGA, WLCSP | 64-XFBGA, WLCSP | 64-XFBGA, WLCSP | 64-XFBGA, WLCSP | 64-TQFP | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-WLCSP (4.31x4.43) | 64-WLCSP (4.31x4.43) | 64-WLCSP (5.27x5.19) | 64-WLCSP (4.31x4.43) | 64-TQFP (10x10) | 64-QFN (9x9) |
