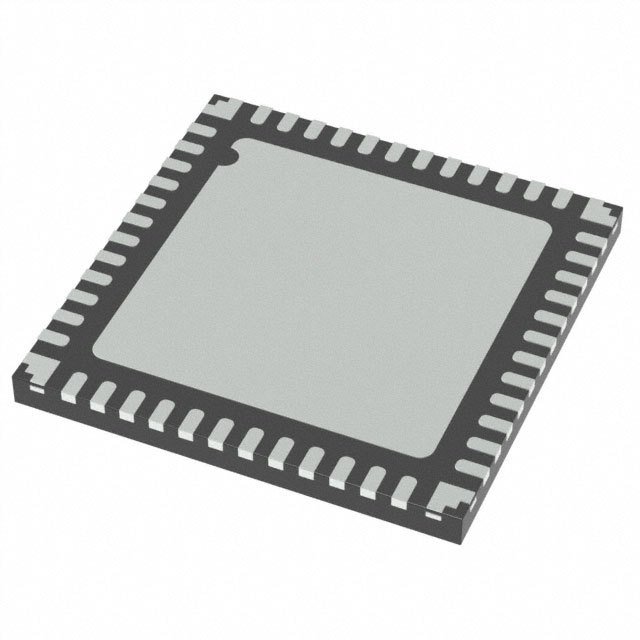

| Part Number | ATMEGA3209-MU | ATMEGA3209-MUR | ATMEGA3208-MU | ATMEGA3209-AU | ATMEGA3209-MF |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | AVR | AVR | AVR | AVR | AVR |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 41 | 41 | 27 | 41 | 41 |
| Program Memory Size | 32KB (16K x 16) | 32KB (16K x 16) | 32KB (16K x 16) | 32KB (16K x 16) | 32KB (16K x 16) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 |
| RAM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 16x10b | A/D 16x10b | A/D 12x10b | A/D 16x10b | A/D 16x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 48-TQFP | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) | 48-QFN (7x7) | 32-VQFN (5x5) | 48-TQFP (7x7) | 48-QFN (7x7) |
