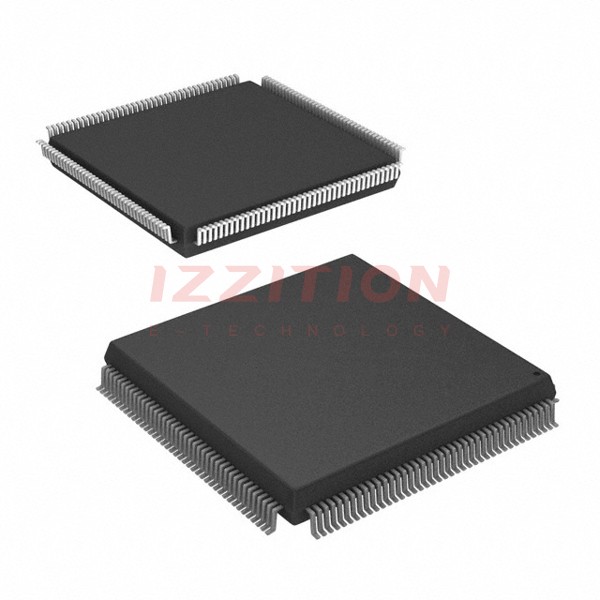

| Part Number | ATF1508ASV-15QI160 | ATF1508AS-15QI160 | ATF1508ASV-15QC160 | ATF1508ASV-15QI100 |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable Type | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) |
| Delay Time tpd(1) Max | 15 ns | 15 ns | 15 ns | 15 ns |
| Voltage Supply - Internal | 3V ~ 3.6V | 4.5V ~ 5.5V | 3V ~ 3.6V | 3V ~ 3.6V |
| Number of Logic Elements/Blocks | - | - | - | - |
| Number of Macrocells | 128 | 128 | 128 | 128 |
| Number of Gates | - | - | - | - |
| Number of I/O | 96 | 96 | 96 | 80 |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 160-BQFP | 160-BQFP | 160-BQFP | 100-BQFP |
| Supplier Device Package | 160-PQFP (28x28) | 160-PQFP (28x28) | 160-PQFP (28x28) | 100-PQFP (14x20) |
