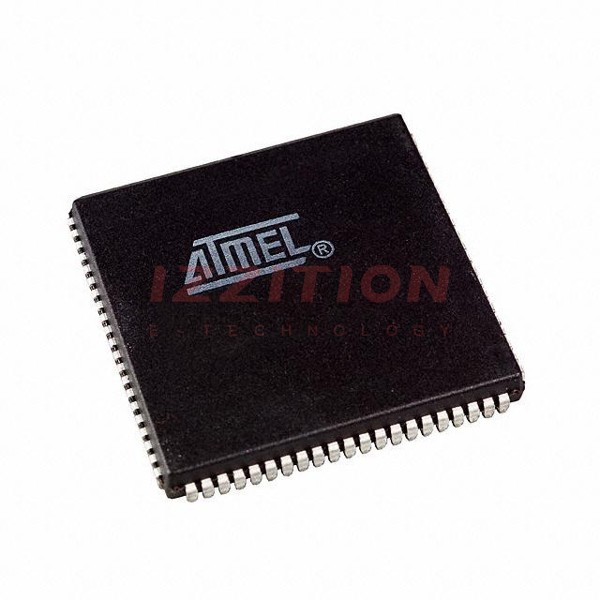

| Part Number | ATF1508AS-15JI84 | ATF1508ASV-15JI84 | ATF1504AS-15JI84 | ATF1508AS-10JI84 | ATF1508AS-15JC84 |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable Type | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) |
| Delay Time tpd(1) Max | 15 ns | 15 ns | 15 ns | 10 ns | 15 ns |
| Voltage Supply - Internal | 4.5V ~ 5.5V | 3V ~ 3.6V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.75V ~ 5.25V |
| Number of Logic Elements/Blocks | - | - | - | - | - |
| Number of Macrocells | 128 | 128 | 64 | 128 | 128 |
| Number of Gates | - | - | - | - | - |
| Number of I/O | 64 | 64 | 64 | 64 | 64 |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) |
| Supplier Device Package | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) |
