Please send RFQ , we will respond immediately.

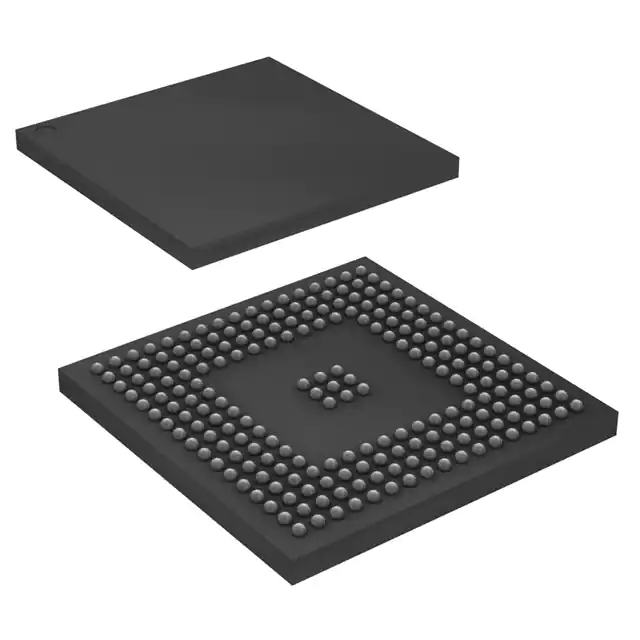

| Part Number | AT91SAM9X35-CU-999 | AT91SAM9G35-CU-999 | AT91SAM9X25-CU-999 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Core Processor | ARM926EJ-S | ARM926EJ-S | ARM926EJ-S |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 400MHz | 400MHz | 400MHz |
| Co-Processors/DSP | - | - | - |
| RAM Controllers | LPDDR, LPDDR2, DDR2, DDR, SDR, SRAM | DDR2, SDRAM, SRAM | LPDDR, LPDDR2, DDR2, DDR, SDR, SRAM |
| Graphics Acceleration | No | No | No |
| Display & Interface Controllers | LCD, Touchscreen | LCD, Touchscreen | - |
| Ethernet | 10/100Mbps | 10/100Mbps | 10/100Mbps (2) |
| SATA | - | - | - |
| USB | USB 2.0 (3) | USB 2.0 (3) | USB 2.0 (3) |
| Voltage - I/O | 1.8V, 2.5V, 3.0V, 3.3V | 1.8V, 3.3V | 1.8V, 2.5V, 3.0V, 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Security Features | - | - | - |
| Package / Case | 217-LFBGA | 217-LFBGA | 217-LFBGA |
| Supplier Device Package | 217-LFBGA (15x15) | 217-LFBGA (15x15) | 217-LFBGA (15x15) |
