Please send RFQ , we will respond immediately.

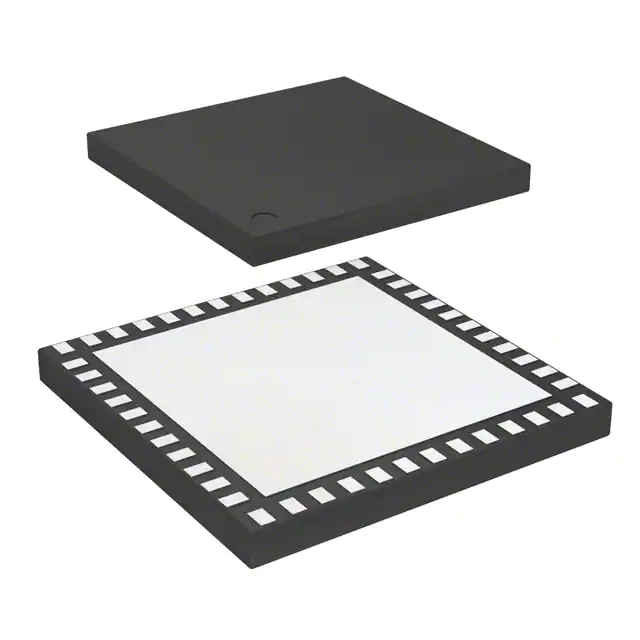

| Part Number | AT32UC3L016-D3HR | AT32UC3L016-D3UR | AT32UC3L016-D3HT |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete |
| Core Processor | AVR | AVR | AVR |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 50MHz | 50MHz | 50MHz |
| Connectivity | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 36 | 36 | 36 |
| Program Memory Size | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | - | - | - |
| RAM Size | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V |
| Data Converters | A/D 8x12b | A/D 8x12b | A/D 8x12b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-UFLGA Exposed Pad | 48-UFLGA Exposed Pad | 48-UFLGA Exposed Pad |
| Supplier Device Package | 48-TLLGA (5.5x5.5) | 48-TLLGA (5.5x5.5) | 48-TLLGA (5.5x5.5) |
