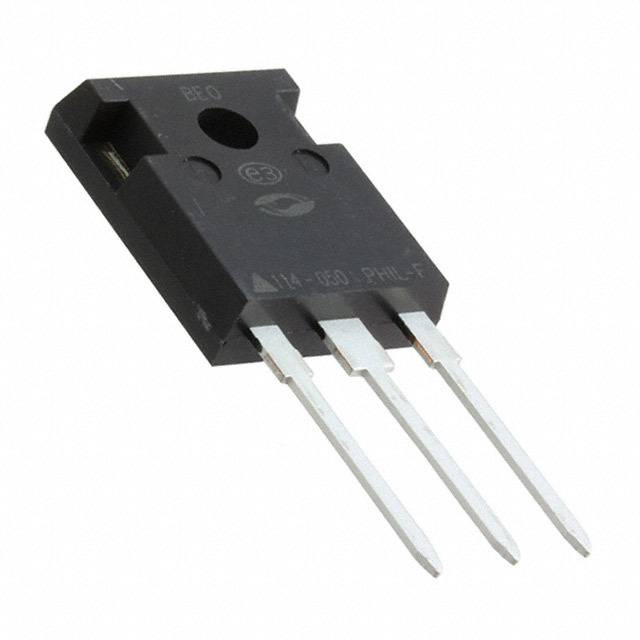

| Part Number | ARF463AG | ARF463BG | ARF465AG | ARF466AG | ARF460AG | ARF461AG |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Transistor Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Frequency | 81.36MHz | 81.36MHz | 40.68MHz | 40.68MHz | 40.68MHz | 65MHz |
| Gain | 15dB | 15dB | 15dB | 16dB | 15dB | 15dB |
| Voltage - Test | 125 V | 125 V | 300 V | 150 V | 125 V | 50 V |
| Current Rating (Amps) | 9A | 9A | 6A | 13A | 14A | 25µA |
| Noise Figure | - | - | - | - | - | - |
| Current - Test | 50 mA | 50 mA | - | - | 50 mA | - |
| Power - Output | 100W | 100W | 150W | 300W | - | 150W |
| Voltage - Rated | 500 V | 500 V | 1200 V | 1000 V | 500 V | 1000 V |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-264-3, TO-264AA | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 | TO-247 | TO-247 | TO-264 | TO-247CS | TO-247 |
