Microchip Technology-APTML100U60R020T1AG - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	1000 V
Current - Continuous Drain (Id) @ 25°C:	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	720mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	4V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	6000 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	520W (Tc)
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Supplier Device Package:	SP1
Package / Case:	SP1

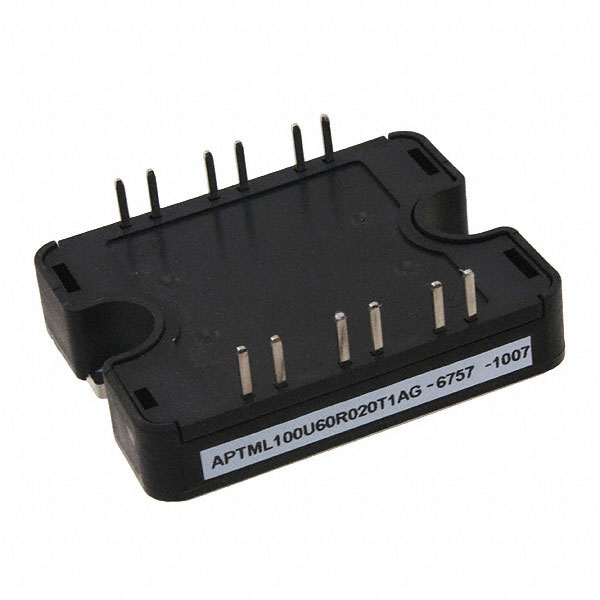

Microchip Technology APTML100U60R020T1AG
