Microchip Technology-APTMC60TL11CT3AG - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	4 N-Channel (Three Level Inverter)
FET Feature:	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C:	28A (Tc)
Rds On (Max) @ Id, Vgs:	98mOhm @ 20A, 20V
Vgs(th) (Max) @ Id:	2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	49nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds:	950pF @ 1000V
Power - Max:	125W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP3
Supplier Device Package:	SP3

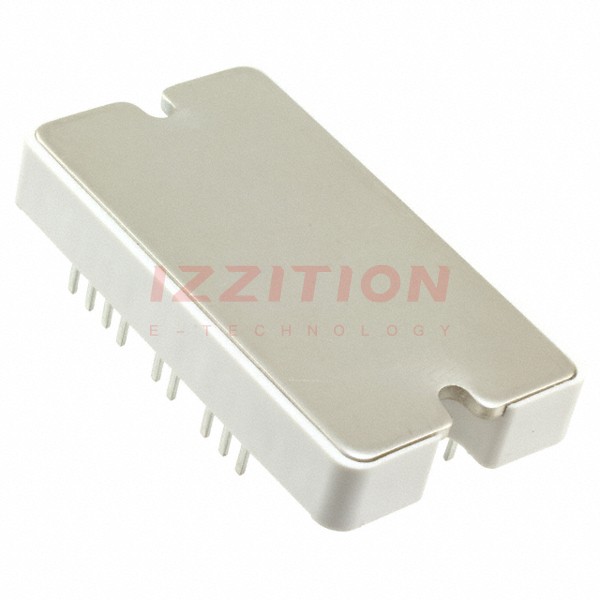

Microchip Technology APTMC60TL11CT3AG
