Microchip Technology-APTM20DAM05G - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	317A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	6mOhm @ 158.5A, 10V
Vgs(th) (Max) @ Id:	5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:	448 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	27400 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	1136W (Tc)
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Supplier Device Package:	SP6
Package / Case:	SP6

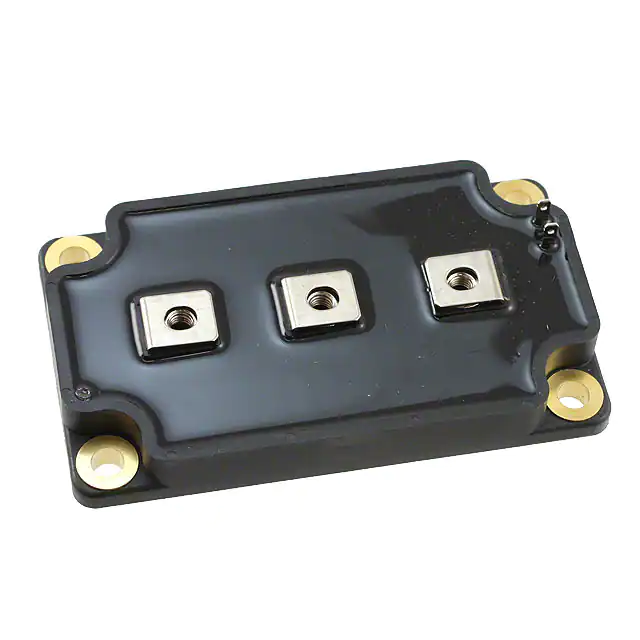

Microchip Technology APTM20DAM05G
