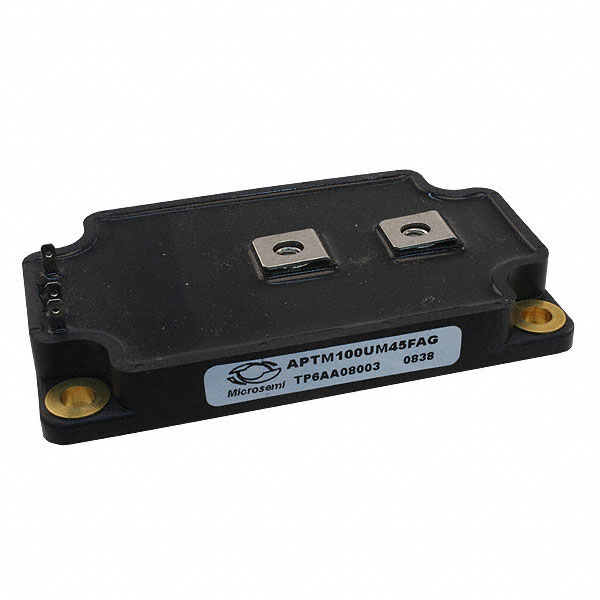

| Part Number | APTM100UM45FAG | APTM100UM45DAG |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 215A (Tc) | 215A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 107.5A, 10V | 52mOhm @ 107.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 30mA | 5V @ 30mA |
| Gate Charge (Qg) (Max) @ Vgs | 1602 nC @ 10 V | 1602 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 42700 pF @ 25 V | 42700 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 5000W (Tc) | 5000W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Supplier Device Package | SP6 | SP6 |
| Package / Case | SP6 | SP6 |
