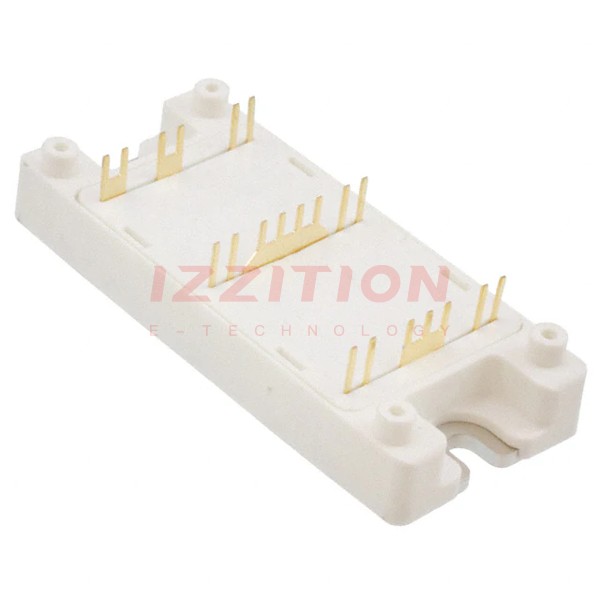

| Part Number | APTM100H45SCTG | APTM100H45STG |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| FET Type | 4 N-Channel (Half Bridge) | 4 N-Channel (Half Bridge) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 1000V (1kV) | 1000V (1kV) |
| Current - Continuous Drain (Id) @ 25°C | 18A | 18A |
| Rds On (Max) @ Id, Vgs | 540mOhm @ 9A, 10V | 540mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA | 5V @ 2.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 154nC @ 10V | 154nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 4350pF @ 25V | 4350pF @ 25V |
| Power - Max | 357W | 357W |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | SP4 | SP4 |
| Supplier Device Package | SP4 | SP4 |
