Microchip Technology-APTGT75SK120TG - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	Single
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	110 A
Power - Max:	357 W
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 75A
Current - Collector Cutoff (Max):	250 µA
Input Capacitance (Cies) @ Vce:	5.34 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP4
Supplier Device Package:	SP4

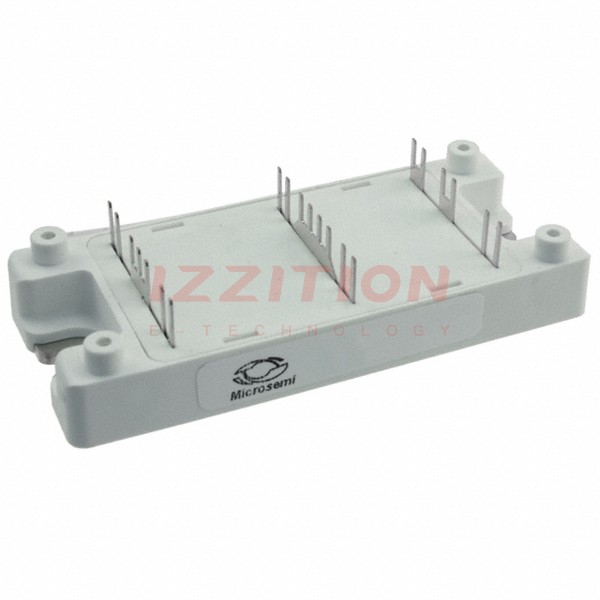

Microchip Technology APTGT75SK120TG
