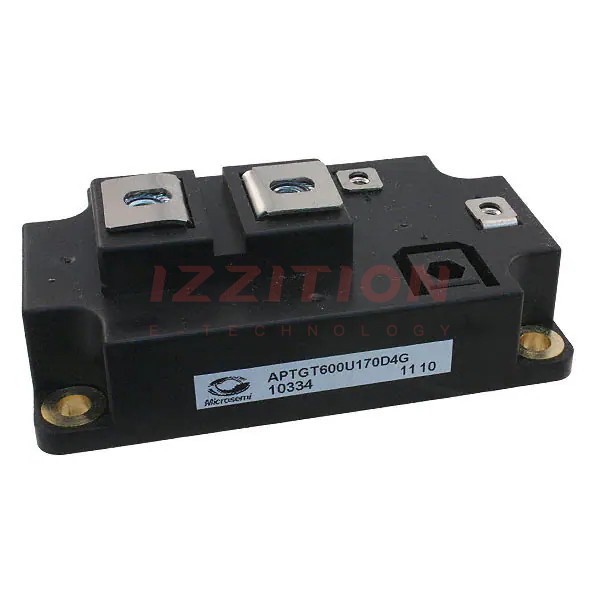

| Part Number | APTGT600U170D4G | APTGT600U120D4G |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | 1200 V |
| Current - Collector (Ic) (Max) | 1100 A | 900 A |
| Power - Max | 2900 W | 2500 W |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 600A | 2.1V @ 15V, 600A |
| Current - Collector Cutoff (Max) | 1 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 51 nF @ 25 V | 40 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | D4 | D4 |
| Supplier Device Package | D4 | D4 |
