Microchip Technology-APTGT450A60G - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	Half Bridge
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	550 A
Power - Max:	1750 W
Vce(on) (Max) @ Vge, Ic:	1.8V @ 15V, 450A
Current - Collector Cutoff (Max):	500 µA
Input Capacitance (Cies) @ Vce:	37 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP6
Supplier Device Package:	SP6

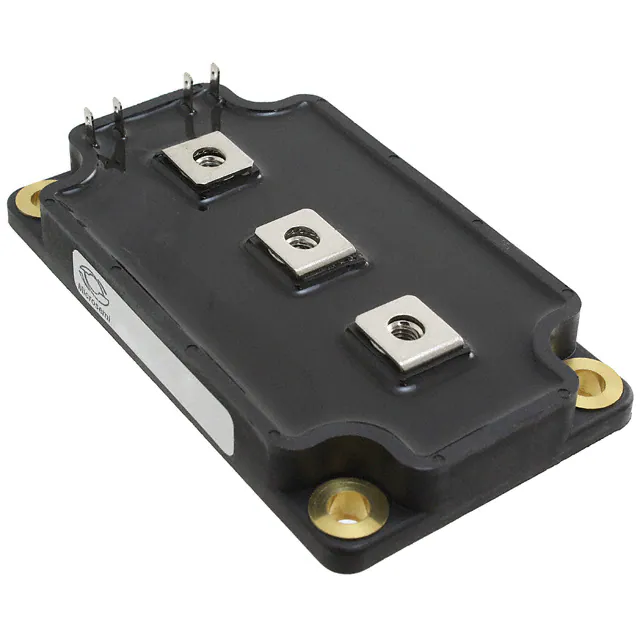

Microchip Technology APTGT450A60G
