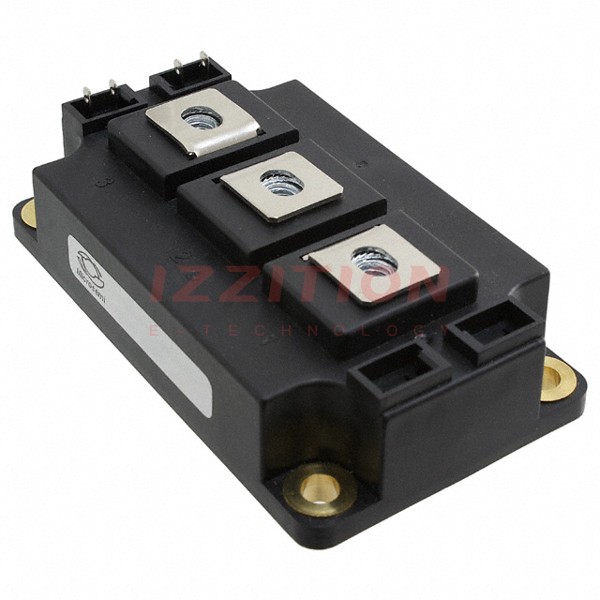

| Part Number | APTGT400A60D3G | APTGT400DA60D3G |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | Half Bridge | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 500 A | 500 A |
| Power - Max | 1250 W | 1250 W |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 400A | 1.9V @ 15V, 400A |
| Current - Collector Cutoff (Max) | 500 µA | 500 µA |
| Input Capacitance (Cies) @ Vce | 24 nF @ 25 V | 24 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | No | No |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | D-3 Module | D-3 Module |
| Supplier Device Package | D3 | D3 |
