Microchip Technology-APTGT300A170G - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	Half Bridge
Voltage - Collector Emitter Breakdown (Max):	1700 V
Current - Collector (Ic) (Max):	400 A
Power - Max:	1660 W
Vce(on) (Max) @ Vge, Ic:	2.4V @ 15V, 300A
Current - Collector Cutoff (Max):	750 µA
Input Capacitance (Cies) @ Vce:	26.5 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP6
Supplier Device Package:	SP6

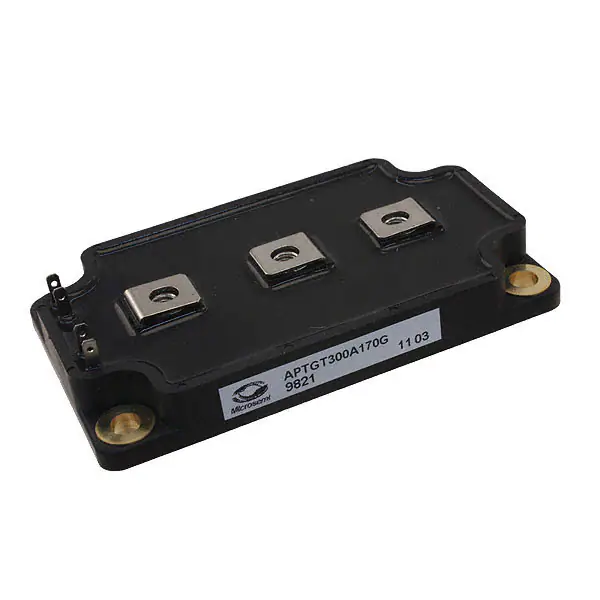

Microchip Technology APTGT300A170G
