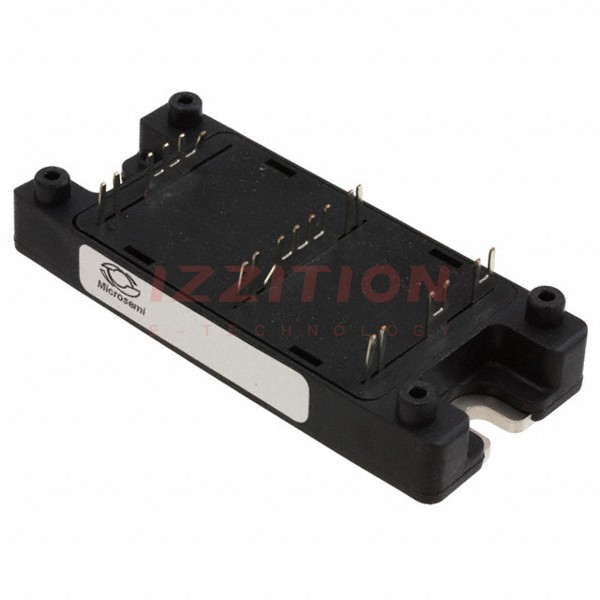

| Part Number | APTGT200DU60TG | APTGT100DU60TG |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | Dual, Common Source | Dual, Common Source |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 290 A | 150 A |
| Power - Max | 625 W | 340 W |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 200A | 1.9V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 250 µA | 250 µA |
| Input Capacitance (Cies) @ Vce | 12.3 nF @ 25 V | 6.1 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | Yes | Yes |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | SP4 | SP4 |
| Supplier Device Package | SP4 | SP4 |
