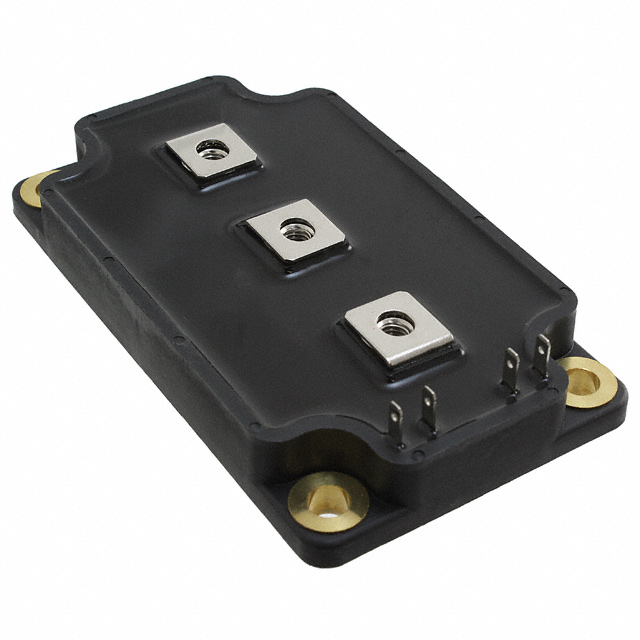

| Part Number | APTGT150DU120G | APTGT150DU120TG | APTGT150DA120G |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Dual, Common Source | Dual, Common Source | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 220 A | 220 A | 220 A |
| Power - Max | 690 W | 690 W | 690 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 150A | 2.1V @ 15V, 150A | 2.1V @ 15V, 150A |
| Current - Collector Cutoff (Max) | 350 µA | 250 µA | 350 µA |
| Input Capacitance (Cies) @ Vce | 10.7 nF @ 25 V | 10.7 nF @ 25 V | 10.7 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | Yes | No |
| Operating Temperature | - | -40°C ~ 150°C (TJ) | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | SP6 | SP4 | SP6 |
| Supplier Device Package | SP6 | SP4 | SP6 |
