Microchip Technology-APTGT100TL60T3G - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	Three Level Inverter
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	150 A
Power - Max:	340 W
Vce(on) (Max) @ Vge, Ic:	1.9V @ 15V, 100A
Current - Collector Cutoff (Max):	250 µA
Input Capacitance (Cies) @ Vce:	6.1 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP3
Supplier Device Package:	SP3

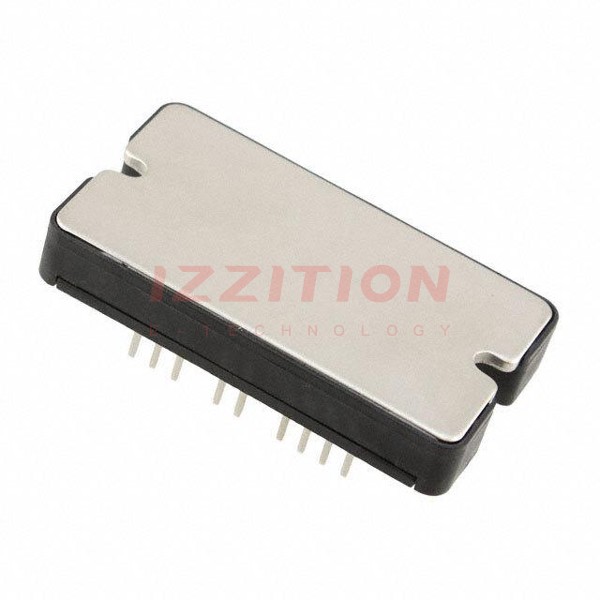

Microchip Technology APTGT100TL60T3G
