Microchip Technology-APTGL60TL120T3G - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	Three Level Inverter
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	80 A
Power - Max:	280 W
Vce(on) (Max) @ Vge, Ic:	2.2V @ 15V, 50A
Current - Collector Cutoff (Max):	1 mA
Input Capacitance (Cies) @ Vce:	2.77 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP3
Supplier Device Package:	SP3

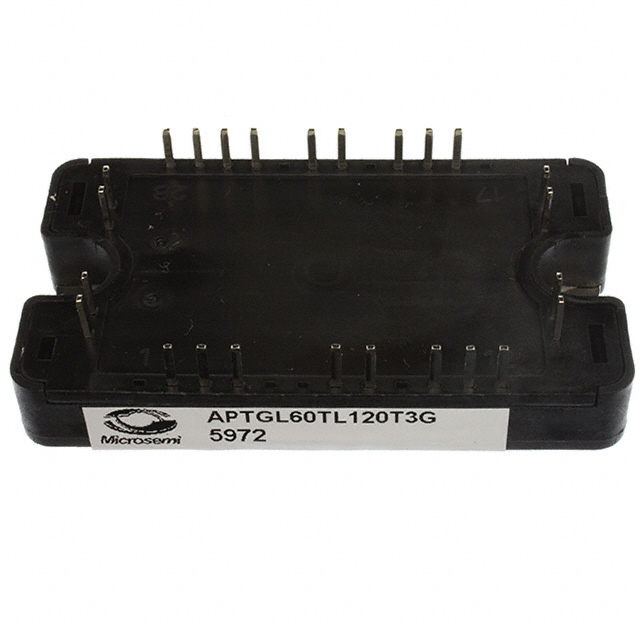

Microchip Technology APTGL60TL120T3G
