Microchip Technology-APTGL475A120D3G - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	Half Bridge
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	610 A
Power - Max:	2080 W
Vce(on) (Max) @ Vge, Ic:	2.2V @ 15V, 400A
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	24.6 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	D-3 Module
Supplier Device Package:	D3

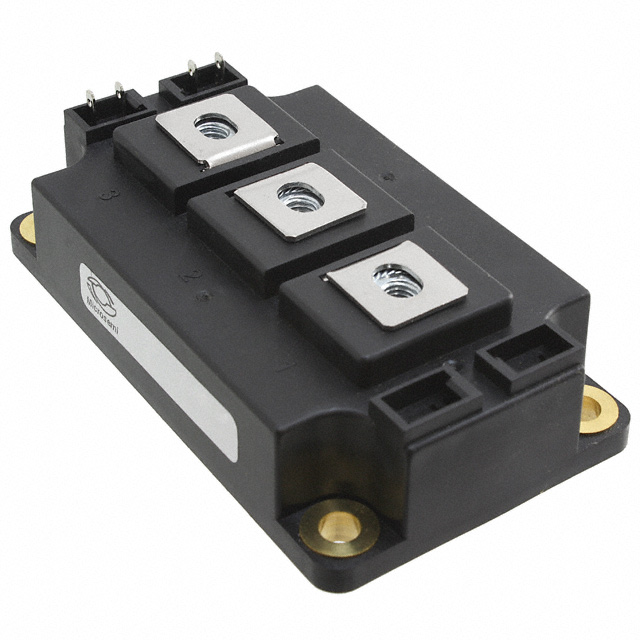

Microchip Technology APTGL475A120D3G
