Microchip Technology-APTGL120TA120TPG - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	Three Phase
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	140 A
Power - Max:	517 W
Vce(on) (Max) @ Vge, Ic:	2.15V @ 15V, 100A
Current - Collector Cutoff (Max):	250 µA
Input Capacitance (Cies) @ Vce:	6.2 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP6
Supplier Device Package:	SP6-P

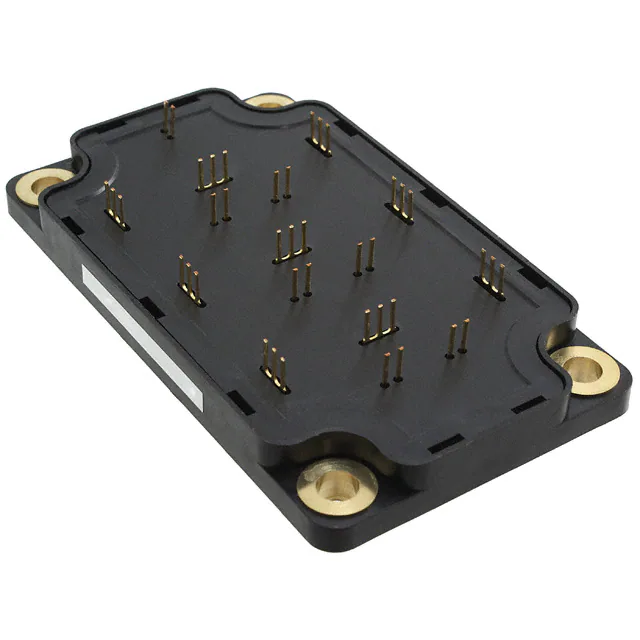

Microchip Technology APTGL120TA120TPG
