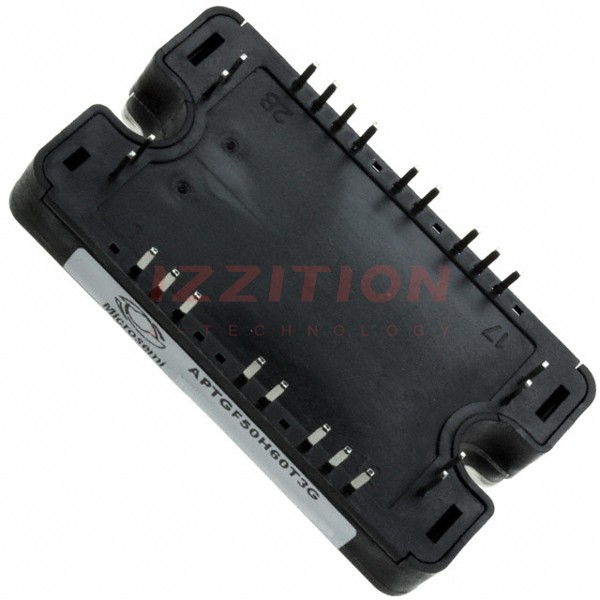

| Part Number | APTGF50H60T3G | APTGT50H60T3G | APTGF50X60T3G | APTGF90H60T3G | APTGF30H60T3G | APTGF50H60T2G |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microsemi Corporation | Microchip Technology | Microchip Technology | Microsemi Corporation |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | NPT | Trench Field Stop | NPT | NPT | NPT | NPT |
| Configuration | Full Bridge Inverter | Full Bridge Inverter | Three Phase Inverter | Full Bridge Inverter | Full Bridge Inverter | Full Bridge Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 65 A | 80 A | 65 A | 120 A | 42 A | 65 A |
| Power - Max | 250 W | 176 W | 250 W | 416 W | 140 W | 250 W |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 50A | 1.9V @ 15V, 50A | 2.45V @ 15V, 50A | 2.45V @ 15V, 100A | 2.45V @ 15V, 30A | 2.45V @ 15V, 50A |
| Current - Collector Cutoff (Max) | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA |
| Input Capacitance (Cies) @ Vce | 2.2 nF @ 25 V | 3.15 nF @ 25 V | 2.2 nF @ 25 V | 4.4 nF @ 25 V | 1.35 nF @ 25 V | 2.2 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | - | -40°C ~ 175°C (TJ) | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | SP3 | SP3 | SP3 | SP3 | SP3 | SP3 |
| Supplier Device Package | SP3 | SP3 | SP3 | SP3 | SP3 | SP3 |
