Microchip Technology-APTGF150H120G - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	NPT
Configuration:	Full Bridge Inverter
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	200 A
Power - Max:	961 W
Vce(on) (Max) @ Vge, Ic:	3.7V @ 15V, 150A
Current - Collector Cutoff (Max):	350 µA
Input Capacitance (Cies) @ Vce:	10.2 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-
Mounting Type:	Chassis Mount
Package / Case:	SP6
Supplier Device Package:	SP6

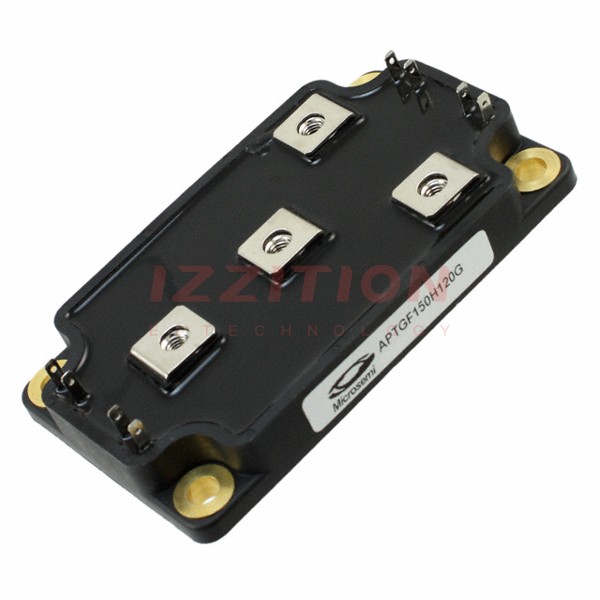

Microchip Technology APTGF150H120G
