Please send RFQ , we will respond immediately.

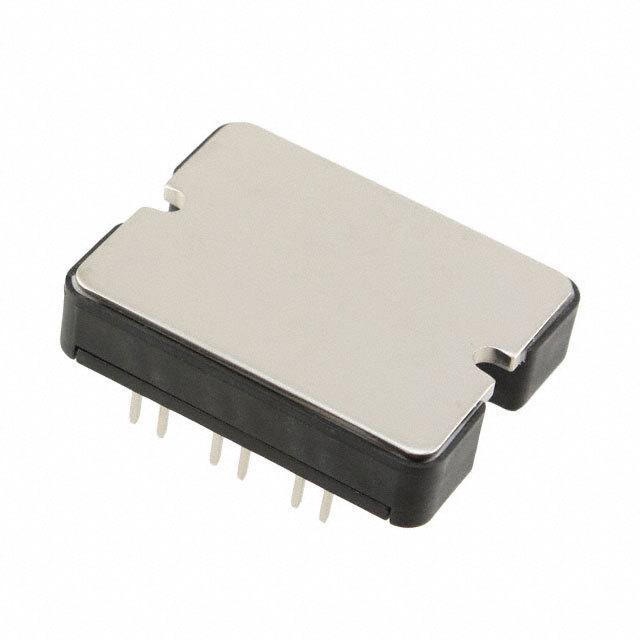

| Part Number | APTGF100DA120T1G | APTGF100DA120TG |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete |
| IGBT Type | NPT | NPT |
| Configuration | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 130 A | 135 A |
| Power - Max | 735 W | 568 W |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 100A | 3.7V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 250 µA | 350 µA |
| Input Capacitance (Cies) @ Vce | 6.5 nF @ 25 V | 6.9 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | Yes | Yes |
| Operating Temperature | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | SP1 | SP4 |
| Supplier Device Package | SP1 | SP4 |
