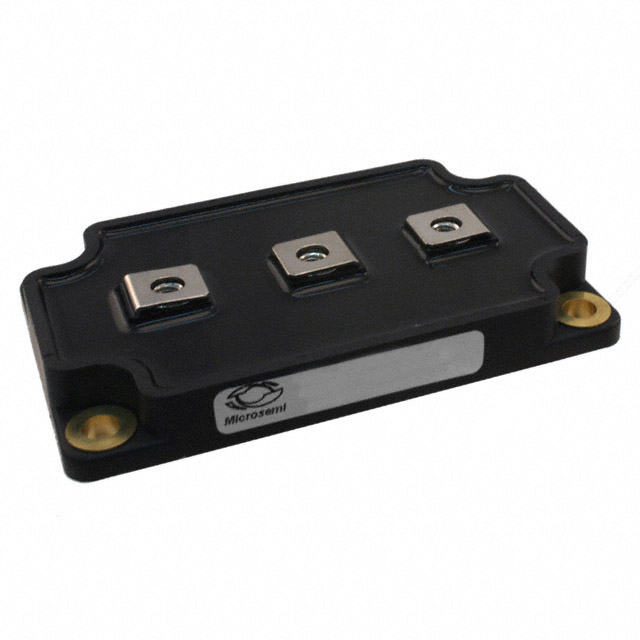

| Part Number | APTDF400AA170G | APTDF400AK170G | APTDF400AA120G |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Diode Configuration | 1 Pair Common Anode | 1 Pair Series Connection | 1 Pair Common Anode |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1700 V | 1700 V | 1200 V |
| Current - Average Rectified (Io) (per Diode) | 480A | 480A | 470A |
| Voltage - Forward (Vf) (Max) @ If | 2.5 V @ 400 A | 2.5 V @ 400 A | 3 V @ 400 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 572 ns | 572 ns | 385 ns |
| Current - Reverse Leakage @ Vr | 750 µA @ 1700 V | 750 µA @ 1700 V | 250 µA @ 1200 V |
| Operating Temperature - Junction | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | LP4 | LP4 | LP4 |
| Supplier Device Package | SP6 | SP6 | SP6 |
