Microchip Technology-APTCV60TLM45T3G - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	Three Level Inverter - IGBT, FET
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	100 A
Power - Max:	250 W
Vce(on) (Max) @ Vge, Ic:	1.9V @ 15V, 75A
Current - Collector Cutoff (Max):	250 µA
Input Capacitance (Cies) @ Vce:	4.62 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP3
Supplier Device Package:	SP3

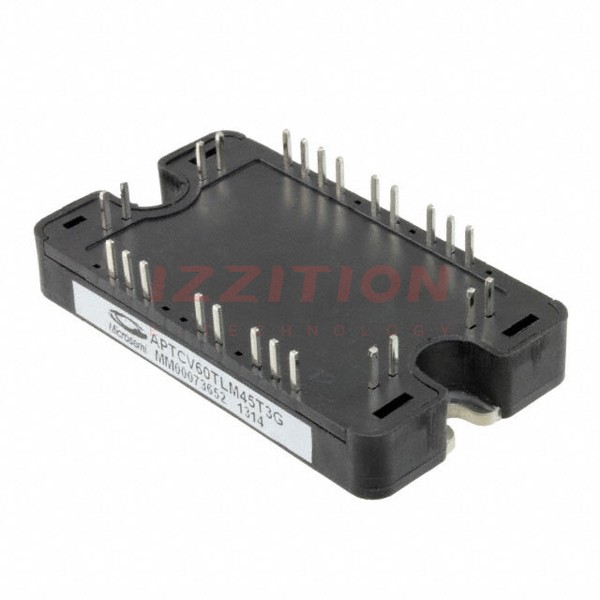

Microchip Technology APTCV60TLM45T3G
