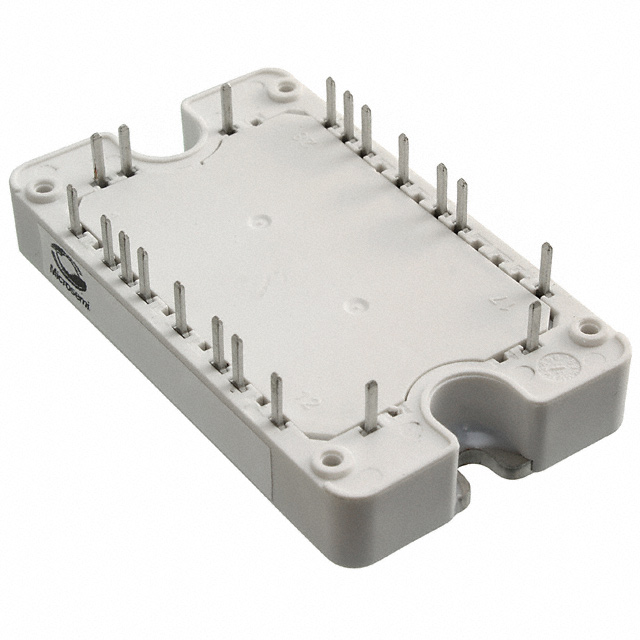

| Part Number | APTCV60HM45RCT3G | APTCV60HM45RT3G |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | Full Bridge Inverter | Full Bridge Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 50 A | 50 A |
| Power - Max | 250 W | 250 W |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 50A | 1.9V @ 15V, 50A |
| Current - Collector Cutoff (Max) | 250 µA | 250 µA |
| Input Capacitance (Cies) @ Vce | 3.15 nF @ 25 V | 3.15 nF @ 25 V |
| Input | Single Phase Bridge Rectifier | Single Phase Bridge Rectifier |
| NTC Thermistor | Yes | Yes |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | SP3 | SP3 |
| Supplier Device Package | SP3 | SP3 |
