Microchip Technology-APTC60AM35SCTG - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Half Bridge)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	600V
Current - Continuous Drain (Id) @ 25°C:	72A
Rds On (Max) @ Id, Vgs:	35mOhm @ 36A, 10V
Vgs(th) (Max) @ Id:	3.9V @ 2mA
Gate Charge (Qg) (Max) @ Vgs:	518nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	14000pF @ 25V
Power - Max:	416W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP4
Supplier Device Package:	SP4

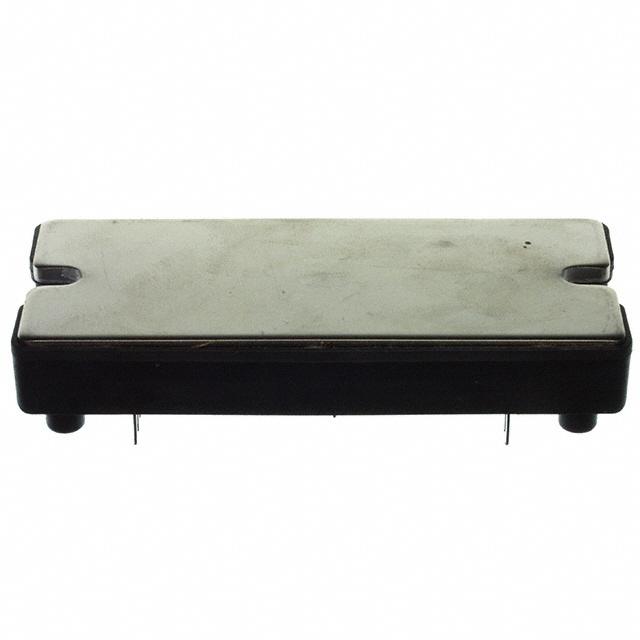

Microchip Technology APTC60AM35SCTG
