Microchip Technology-APT94N65B2C6 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	95A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	35mOhm @ 35.2A, 10V
Vgs(th) (Max) @ Id:	3.5V @ 3.5mA
Gate Charge (Qg) (Max) @ Vgs:	320 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	8140 pF @ 25 V
FET Feature:	Super Junction
Power Dissipation (Max):	833W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	T-MAX™ [B2]
Package / Case:	TO-247-3 Variant

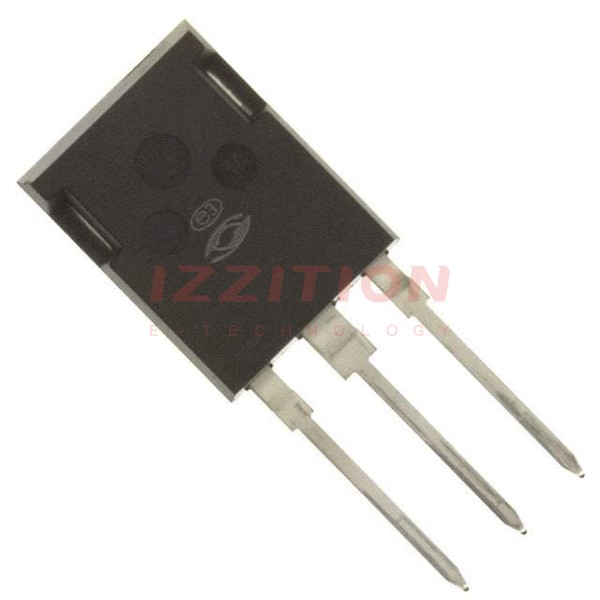

Microchip Technology APT94N65B2C6
