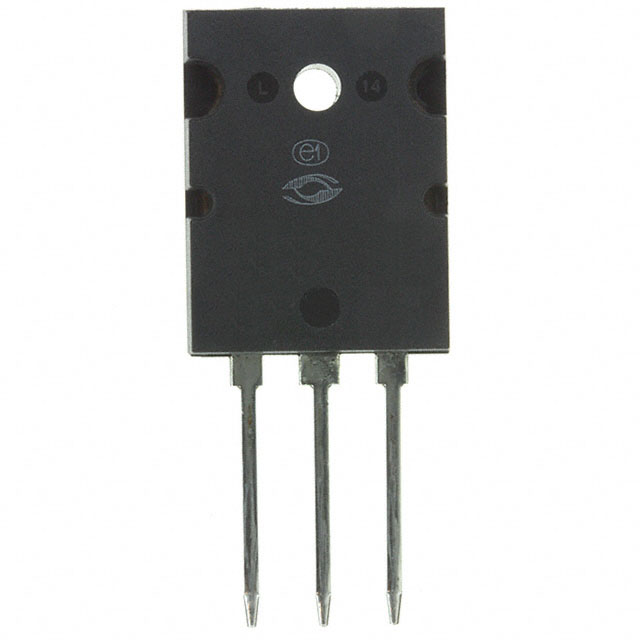

| Part Number | APT8014L2LLG | APT8014L2FLLG |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 52A (Tc) | 52A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - |
| Rds On (Max) @ Id, Vgs | 140mOhm @ 26A, 10V | 160mOhm @ 26A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 5mA | 5V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 285 nC @ 10 V | 285 nC @ 10 V |
| Vgs (Max) | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 7238 pF @ 25 V | 7238 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | - |
| Operating Temperature | - | - |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | 264 MAX™ [L2] | 264 MAX™ [L2] |
| Package / Case | TO-264-3, TO-264AA | TO-264-3, TO-264AA |
