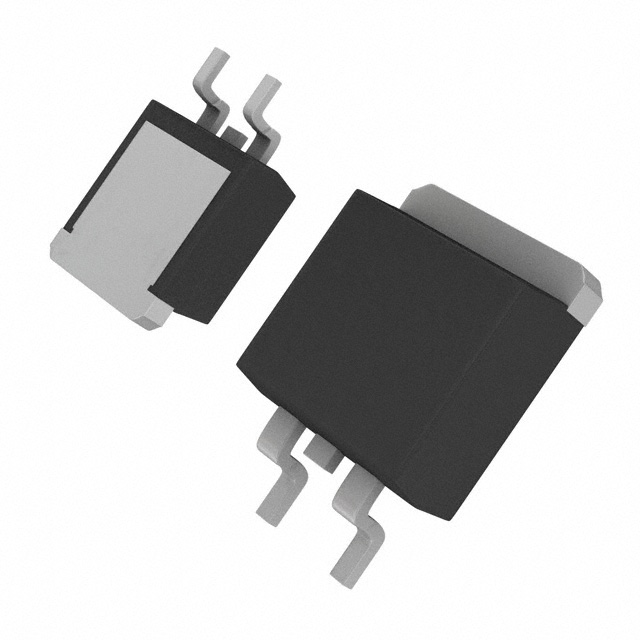

| Part Number | APT77N60SC6 | APT77N60BC6 |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 77A (Tc) | 77A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 41mOhm @ 44.4A, 10V | 41mOhm @ 44.4A, 10V |
| Vgs(th) (Max) @ Id | 3.6V @ 2.96mA | 3.6V @ 2.96mA |
| Gate Charge (Qg) (Max) @ Vgs | 260 nC @ 10 V | 260 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 13600 pF @ 25 V | 13600 pF @ 25 V |
| FET Feature | Super Junction | Super Junction |
| Power Dissipation (Max) | 481W (Tc) | 481W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Through Hole |
| Supplier Device Package | D3PAK | TO-247 [B] |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-247-3 |
