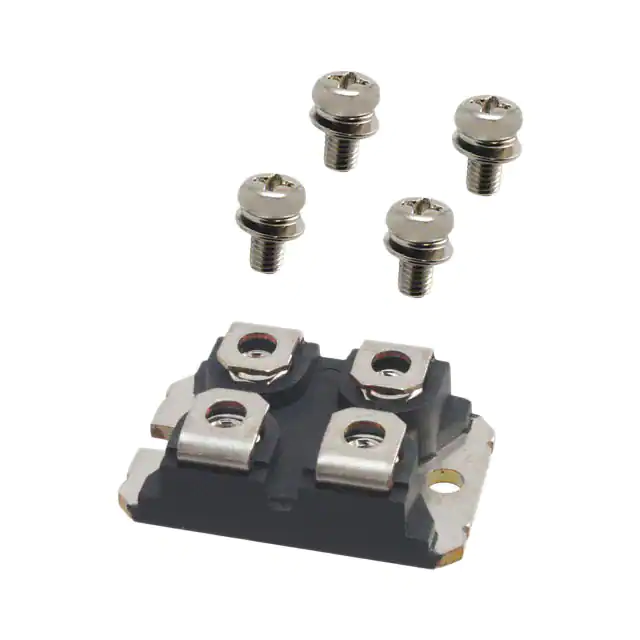

| Part Number | APT75GP120J | APT35GP120J | APT45GP120J | APT75GN120J |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microsemi Corporation |
| Product Status | Active | Active | Active | Obsolete |
| IGBT Type | PT | PT | PT | Trench Field Stop |
| Configuration | Single | Single | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 128 A | 64 A | 75 A | 124 A |
| Power - Max | 543 W | 284 W | 329 W | 379 W |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 75A | 3.9V @ 15V, 35A | 3.9V @ 15V, 45A | 2.1V @ 15V, 75A |
| Current - Collector Cutoff (Max) | 1 mA | 250 µA | 500 µA | 100 µA |
| Input Capacitance (Cies) @ Vce | 7.04 nF @ 25 V | 3.24 nF @ 25 V | 3.94 nF @ 25 V | 4.8 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | No | No |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | ISOTOP | ISOTOP | ISOTOP | ISOTOP |
| Supplier Device Package | ISOTOP® | ISOTOP® | ISOTOP® | ISOTOP® |
