| Part Number | APT75DQ120BG | APT75DQ120SG | APT15DQ120BG | APT75DQ100BG |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | - | 1200 V | 1000 V |
| Current - Average Rectified (Io) | 75A | 75A | 15A | 75A |
| Voltage - Forward (Vf) (Max) @ If | 3.1 V @ 75 A | 3.3 V @ 75 A | 3.3 V @ 15 A | 3 V @ 75 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 325 ns | 325 ns | 240 ns | 250 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V | 100 µA @ 1200 V | 100 µA @ 1200 V | 100 µA @ 1000 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |

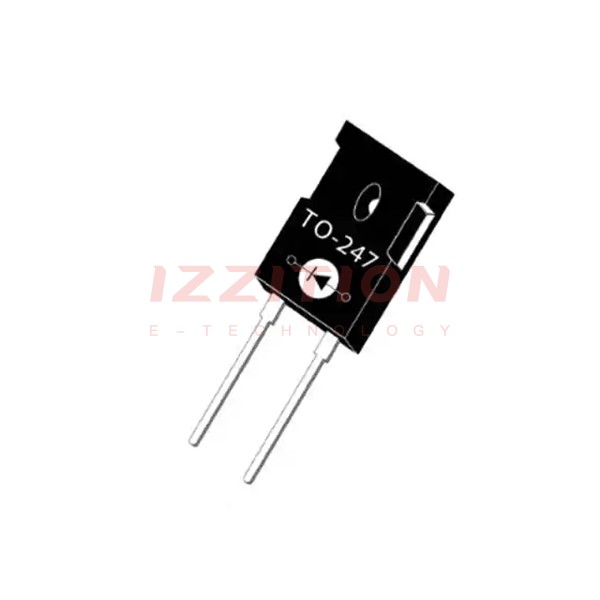

| Package / Case | TO-247-2 | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-247-3 | TO-247-2 |
| Supplier Device Package | TO-247 [B] | D3PAK | TO-247 [B] | TO-247 [B] |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
