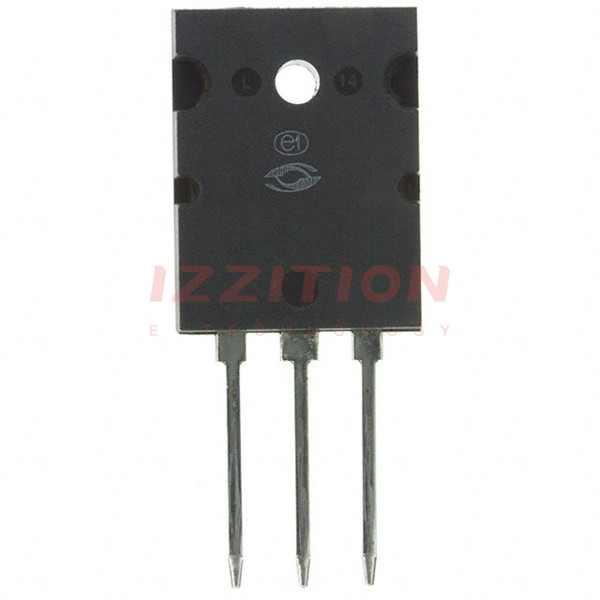

Microchip Technology-APT68GA60LD40 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	PT
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	121 A
Current - Collector Pulsed (Icm):	202 A
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 40A
Power - Max:	520 W
Switching Energy:	715µJ (on), 607µJ (off)
Input Type:	Standard
Gate Charge:	198 nC
Td (on/off) @ 25°C:	21ns/133ns
Test Condition:	400V, 40A, 4.7Ohm, 15V
Reverse Recovery Time (trr):	22 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-264-3, TO-264AA
Supplier Device Package:	TO-264 [L]

Microchip Technology APT68GA60LD40
