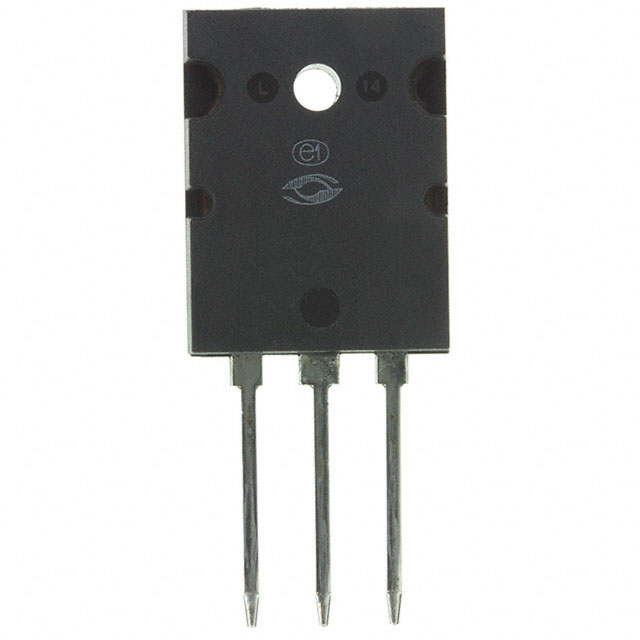

| Part Number | APT60M75L2LLG | APT60M75L2FLLG |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 73A (Tc) | 73A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 36.5A, 10V | 75mOhm @ 36.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 5mA | 5V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 195 nC @ 10 V | 195 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 8930 pF @ 25 V | 8930 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 893W (Tc) | 893W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | 264 MAX™ [L2] | 264 MAX™ [L2] |
| Package / Case | TO-264-3, TO-264AA | TO-264-3, TO-264AA |
