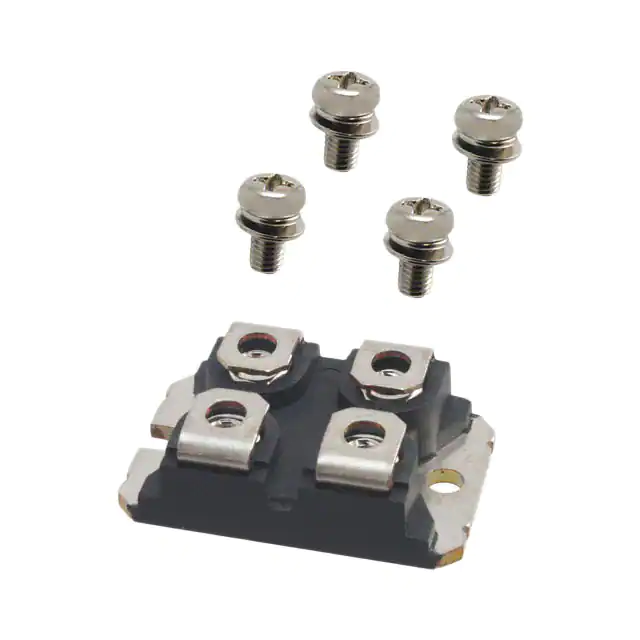

| Part Number | APT60GF120JRD | APT40GF120JRD | APT50GF120JRD |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| IGBT Type | NPT | - | - |
| Configuration | Single | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 115 A | 60 A | 75 A |
| Power - Max | 521 W | 390 W | 460 W |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 60A | 3.4V @ 15V, 50A | 3.4V @ 15V, 50A |
| Current - Collector Cutoff (Max) | 500 mA | 500 µA | 750 µA |
| Input Capacitance (Cies) @ Vce | 7.08 nF @ 25 V | 3.45 nF @ 25 V | 3.45 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227 (ISOTOP®) | SOT-227 (ISOTOP®) | SOT-227 (ISOTOP®) |
