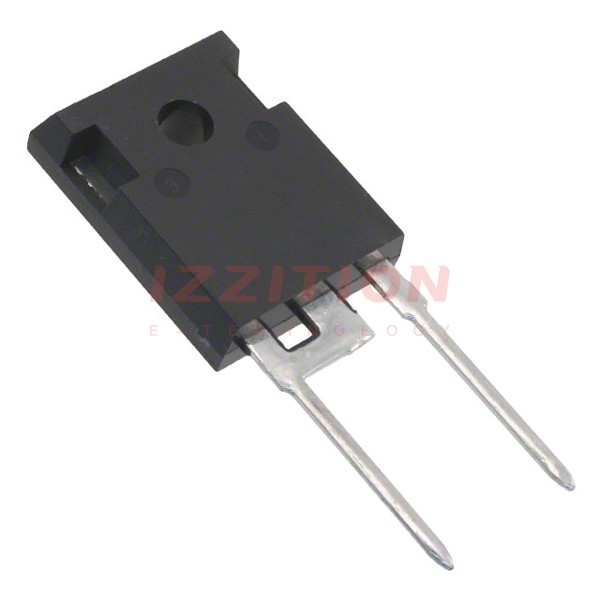

Microchip Technology-APT60DQ120BG - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	APT60DQ120BG	APT60DQ120SG	APT30DQ120BG	APT40DQ120BG	APT60D120BG	APT60DQ100BG
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active	Active
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	1200 V	-	1200 V	1200 V	1200 V	1000 V
Current - Average Rectified (Io)	60A	60A	30A	40A	60A	60A
Voltage - Forward (Vf) (Max) @ If	3.3 V @ 60 A	3.3 V @ 60 A	3.3 V @ 30 A	3.3 V @ 40 A	2.5 V @ 60 A	3 V @ 60 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	320 ns	320 ns	320 ns	350 ns	400 ns	255 ns
Current - Reverse Leakage @ Vr	100 µA @ 1200 V	100 µA @ 1200 V	100 µA @ 1200 V	100 µA @ 1200 V	250 µA @ 1200 V	100 µA @ 1000 V
Capacitance @ Vr, F	-	-	-	-	-	-
Mounting Type	Through Hole	Surface Mount	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-247-2	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA	TO-247-2	TO-247-2	TO-247-2	TO-247-2
Supplier Device Package	TO-247 [B]	D3PAK	TO-247 [B]	TO-247 [B]	TO-247 [B]	TO-247 [B]
Operating Temperature - Junction	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io):	60A
Voltage - Forward (Vf) (Max) @ If:	3.3 V @ 60 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	320 ns
Current - Reverse Leakage @ Vr:	100 µA @ 1200 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247 [B]
Operating Temperature - Junction:	-55°C ~ 175°C

Microchip Technology APT60DQ120BG
