Microchip Technology-APT60D120BG - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	APT60D120BG	APT60DQ120BG	APT60D20BG	APT60D120SG	APT30D120BG	APT60D100BG
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active	Active
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	1200 V	1200 V	200 V	1200 V	1200 V	1000 V
Current - Average Rectified (Io)	60A	60A	60A	60A	30A	60A
Voltage - Forward (Vf) (Max) @ If	2.5 V @ 60 A	3.3 V @ 60 A	1.3 V @ 60 A	2.5 V @ 60 A	2.5 V @ 30 A	2.5 V @ 60 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	400 ns	320 ns	31 ns	400 ns	370 ns	280 ns
Current - Reverse Leakage @ Vr	250 µA @ 1200 V	100 µA @ 1200 V	250 µA @ 200 V	250 µA @ 1200 V	250 µA @ 1200 V	250 µA @ 1000 V
Capacitance @ Vr, F	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Surface Mount	Through Hole	Through Hole
Package / Case	TO-247-2	TO-247-2	TO-247-2	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA	TO-247-2	TO-247-2
Supplier Device Package	TO-247 [B]	TO-247 [B]	TO-247 [B]	D3 [S]	TO-247	TO-247 [B]
Operating Temperature - Junction	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io):	60A
Voltage - Forward (Vf) (Max) @ If:	2.5 V @ 60 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	400 ns
Current - Reverse Leakage @ Vr:	250 µA @ 1200 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247 [B]
Operating Temperature - Junction:	-55°C ~ 175°C

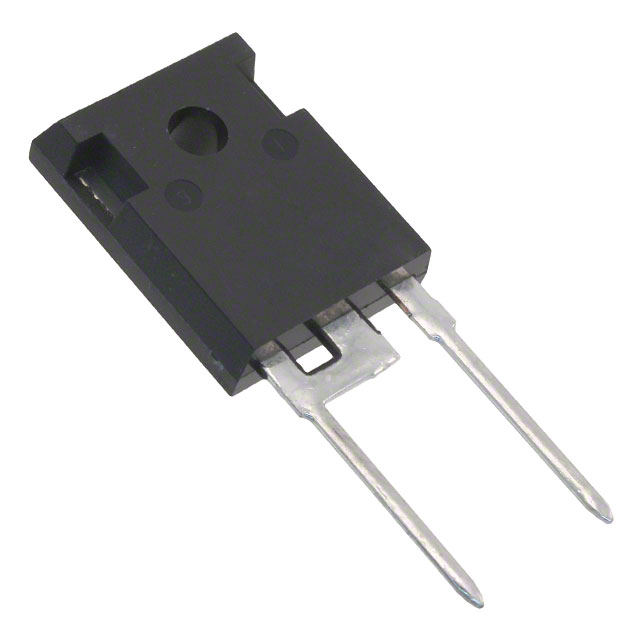

Microchip Technology APT60D120BG
