Microchip Technology-APT60D100BG - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	APT60D100BG	APT60D120BG	APT60DQ100BG	APT60D100SG	APT30D100BG
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active
Diode Type	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	1000 V	1200 V	1000 V	1000 V	1000 V
Current - Average Rectified (Io)	60A	60A	60A	60A	30A
Voltage - Forward (Vf) (Max) @ If	2.5 V @ 60 A	2.5 V @ 60 A	3 V @ 60 A	2.5 V @ 60 A	2.3 V @ 30 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	280 ns	400 ns	255 ns	280 ns	290 ns
Current - Reverse Leakage @ Vr	250 µA @ 1000 V	250 µA @ 1200 V	100 µA @ 1000 V	250 µA @ 1000 V	250 µA @ 1000 V
Capacitance @ Vr, F	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Surface Mount	Through Hole
Package / Case	TO-247-2	TO-247-2	TO-247-2	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA	TO-247-2
Supplier Device Package	TO-247 [B]	TO-247 [B]	TO-247 [B]	D3 [S]	TO-247
Operating Temperature - Junction	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1000 V
Current - Average Rectified (Io):	60A
Voltage - Forward (Vf) (Max) @ If:	2.5 V @ 60 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	280 ns
Current - Reverse Leakage @ Vr:	250 µA @ 1000 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247 [B]
Operating Temperature - Junction:	-55°C ~ 175°C

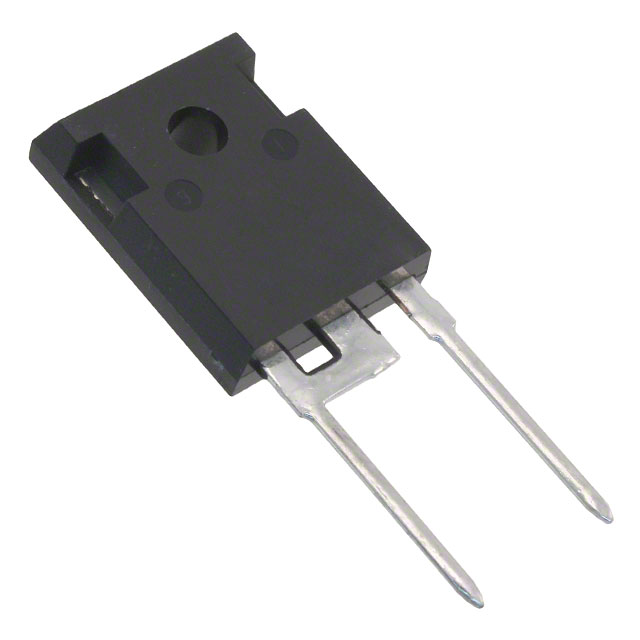

Microchip Technology APT60D100BG
