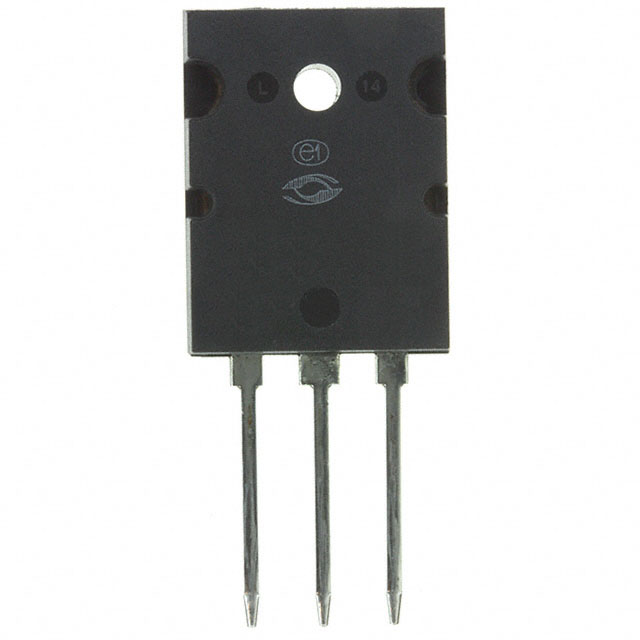

| Part Number | APT6015LVRG | APT6015LVFRG |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 38A (Tc) | 38A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 500mA, 10V | 150mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 4V @ 2.5mA | 4V @ 2.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 475 nC @ 10 V | 475 nC @ 10 V |
| Vgs (Max) | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 9000 pF @ 25 V | 9000 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | - |
| Operating Temperature | - | - |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-264 [L] | TO-264 [L] |
| Package / Case | TO-264-3, TO-264AA | TO-264-3, TO-264AA |
